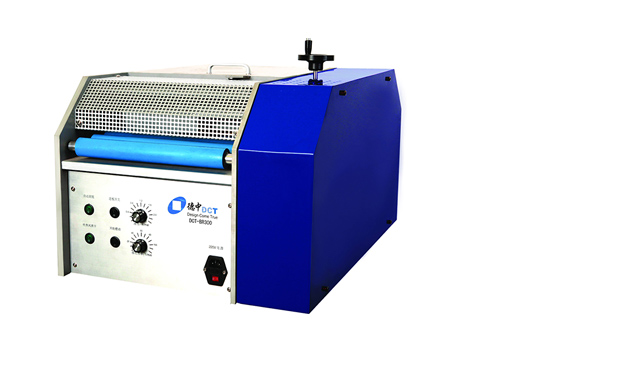

BR Series Brushing Machines
Professional brushing machines at reasonable prices are possible. DCT BR series have height adjustable brushes, adjustable oscillation and transport speed as well as fully wipe and dry zones. Suitable for all cleaning steps in PCB or printing industry.
Features
High quality brush roll
PCB Industrial special roller, long life, good brushing effect
Professional inverter drive unit
High speed, low noise
Controllable brush width
Brush height and pressure adjustable, uniform and controllable brush width
Optional water circulation base
Water circulation base as option available, it can be used without water-wastewater system
Product parameters
Technical data | BR300 | BR300B |
Board thickness | 0.2~4mm | 0.2~4mm |
Max. Board width | 300mm | 300mm |
Conveyor speed | 0.2~2m/min | 0.2~2m/min |
Oscillation stroke | 10mm | 10mm |
Oscillation frequency | 0~120/min | 0~120/min |
Brushing roller outside diameter | Φ91mm | Φ91mm |
Brushing speed | 1,400rpm | 1,400rpm |
Dryer temperature | Max.100℃ | Max.100℃ |
Water circuilation base | No | Yes |
Working ambient | BR300 | BR300B |
Power supply | 220V/50Hz | 220V/50Hz |
Power consumption | 2.2kW | 2.2kW |
Dimension（W x H x D) | 760mm x 560mm x 440mm | 760mm x 560mm x 1,240mm |
Weight | 45kg | 70kg |
